BOSCH 0 001 107 540 Starter
  • BOSCH 0 001 107 540 Starter
  • BOSCH 0 001 107 540 Starter
  • BOSCH 0 001 107 540 Starter
  • BOSCH 0 001 107 540 Starter
  • BOSCH 0 001 107 540 Starter

BOSCH 0 001 107 540 Starter

0 001 107 540
BOSCH
  Zásady zabezpečenia

(upraviť pomocou modulu Ubezpečenie zákazníka)

  Zásady doručenia

(upraviť pomocou modulu Ubezpečenie zákazníka)

  Zásady vrátenia

(upraviť pomocou modulu Ubezpečenie zákazníka)

Product Details
0 001 107 540
New

Data sheet

Voltage [V]
12
Mounting Angle [degrees]
33
Position/Degree
rechts
Thread Size
M10
Clamp
30
50
Starter Type
Self-supporting
Jaw opening angle measurement [Degree]
35
Mounting bore angle measurement [degree]
33
Number of mounting bores
0
Pinion Rest Position [mm]
26,4
Number of Teeth
9
Rotation Direction
Clockwise rotation
Rated Power [kW]
1,1
Flange Diameter [mm]
70
Length [mm]
200,5
Width [mm]
80
Height [mm]
156,7
Number of threaded holes
2
Thread Size 1
M10X1.5

Specific References

MPN
0 001 107 540
BOSCH
0 986 020 350
BOSCH
0001107406
BOSCH
0986020353
DELCO REMY
DRT0350
DENSO
4280001650
DENSO
ADL4R4
DENSO
MS4280001650
HC-PARTS
CS1283
HELLA
8EA738110001
LUCAS ELECTRICAL
LRS01701
LUCAS ELECTRICAL
LRS1701
MERCEDES-BENZ
0051513901
MERCEDES-BENZ
005151390180
MERCEDES-BENZ
0051514001
MERCEDES-BENZ
005151400180
MERCEDES-BENZ
A0051513901
MERCEDES-BENZ
A005151390180
MERCEDES-BENZ
A0051514001
MERCEDES-BENZ
A005151400180
DWR12V11KW

C-CLASS T-Model (S204) C 250 CGI (204.247) (2009 - 2014) 1796 ccm, 150 kw, 204 hp

E-CLASS (W212) E 200 CGI (212.048, 212.148) (2009 - 2015) 1796 ccm, 135 kw, 184 hp []

E-CLASS Coupe (C207) E 250 CGI (207.347) (2009 - 2016) 1796 ccm, 150 kw, 204 hp []

E-CLASS T-Model (S212) E 250 CGI (212.247) (2009 - 2013) 1796 ccm, 150 kw, 204 hp

GPSR

Brand: BOSCH

22 other products in the same category:
BOSCH 1 986 S00 690 Starter

Reference: 1 986 S00 690

Brand: BOSCH

BOSCH 1 986 S00 690 Starter

MERCEDES-BENZ, MERCEDES-BENZ (BBDC) Clamp : 30,50, Flange Diameter [mm] : 70, Jaw opening angle measurement [Degree] : 34, Length [mm] : 198, Number of mounting bores : 0, Number of Teeth : 9, Number of threaded holes : 2, Pinion Rest Position [mm] : 26,4, Position/Degree : rechts, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Starter Type : Self-supporting, Thread Size :...
€161.43
More BOSCH 1 986 S00 690 Starter
In stock
In stock: 6
AS-PL S0227 Starter

Reference: S0227

Brand: AS-PL

AS-PL S0227 Starter

MERCEDES-BENZ New part without deposit : , Number of mounting bores : 2, Number of Teeth : 9, Quality : STANDARD LINE, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Version : 0001107406, Voltage [V] : 12
€68.84
More AS-PL S0227 Starter
In stock
In stock: 15
BOSCH 0 986 020 350 Starter

Reference: 0 986 020 350

Brand: BOSCH

BOSCH 0 986 020 350 Starter

MERCEDES-BENZ, MERCEDES-BENZ (BBDC) Clamp : 30,50, Exchange Part : , Flange Diameter [mm] : 70, Jaw opening angle measurement [Degree] : 34, Length [mm] : 201, Mounting Angle [degrees] : 33, Mounting bore angle measurement [degree] : 33, Number of mounting bores : 0, Number of Teeth : 11, Number of Teeth : 9, Number of threaded holes : 2, Pinion Rest Position [mm] : 26,4, Position/Degree :...
€103.65
More BOSCH 0 986 020 350 Starter
In stock
In stock: 6
KAMOKA 8610239 Starter

Reference: 8610239

Brand: KAMOKA

KAMOKA 8610239 Starter

MERCEDES-BENZ Length [mm] : 201, Rated Power [kW] : 1, Thread Size : M10x1.5, Thread Size 1 : M10X1.5, Voltage [V] : 12
€68.41
More KAMOKA 8610239 Starter
Last items in stock
In stock: 2

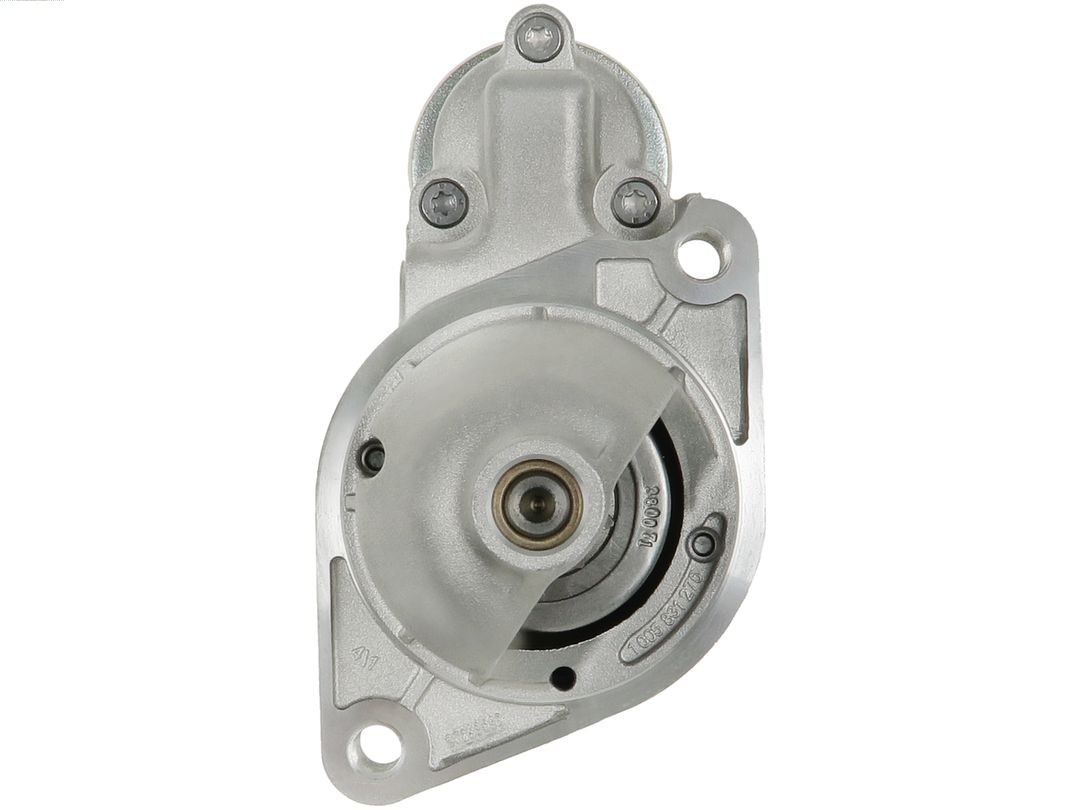

Out-of-Stock AS-PL S0988(SEG) Starter

Reference: S0988(SEG)

Brand: AS-PL

AS-PL S0988(SEG) Starter

MERCEDES-BENZ New part without deposit : , Number of mounting bores : 2, Number of Teeth : 9, Quality : PREMIUM LINE, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Version : 0001107540, Voltage [V] : 12
€139.79
More AS-PL S0988(SEG) Starter
Out-of-Stock
In stock: 0
Out-of-Stock AS-PL S0227(SEG) Starter

Reference: S0227(SEG)

Brand: AS-PL

AS-PL S0227(SEG) Starter

MERCEDES-BENZ New part without deposit : , Number of mounting bores : 2, Number of Teeth : 9, Quality : PREMIUM LINE, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Version : 0001107540, Voltage [V] : 12
€126.92
More AS-PL S0227(SEG) Starter
Out-of-Stock
In stock: 0
Out-of-Stock AS-PL S0227PR Starter

Reference: S0227PR

Brand: AS-PL

AS-PL S0227PR Starter

MERCEDES-BENZ Exchange Part without deposit : , Number of mounting bores : 2, Number of Teeth : 9, Quality : PREMIUM LINE, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Voltage [V] : 12
€88.98
More AS-PL S0227PR Starter
Out-of-Stock
In stock: 0
DENSO DSN3010 Starter

Reference: DSN3010

Brand: DENSO

DENSO DSN3010 Starter

MERCEDES-BENZ Gross Weight [g] : 3060, New part without deposit : , Number of Teeth : 9, Quality : Premium, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Voltage [V] : 12
€152.82
More DENSO DSN3010 Starter
Last items in stock
In stock: 3

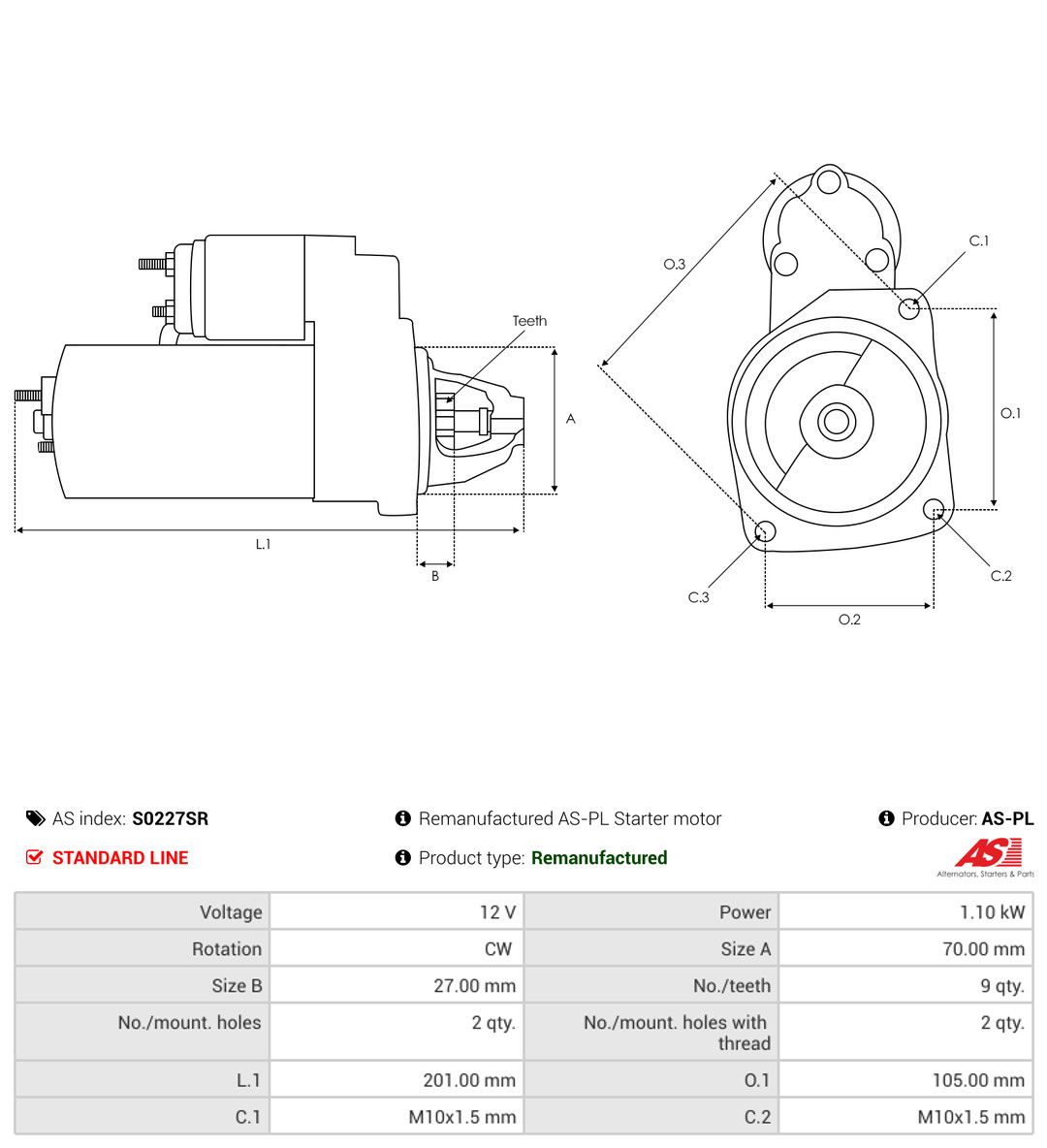

Out-of-Stock AS-PL S0227SR Starter

Reference: S0227SR

Brand: AS-PL

AS-PL S0227SR Starter

MERCEDES-BENZ Exchange Part without deposit : , Number of mounting bores : 2, Number of Teeth : 9, Quality : STANDARD LINE, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Voltage [V] : 12
€86.42
More AS-PL S0227SR Starter
Out-of-Stock
In stock: 0

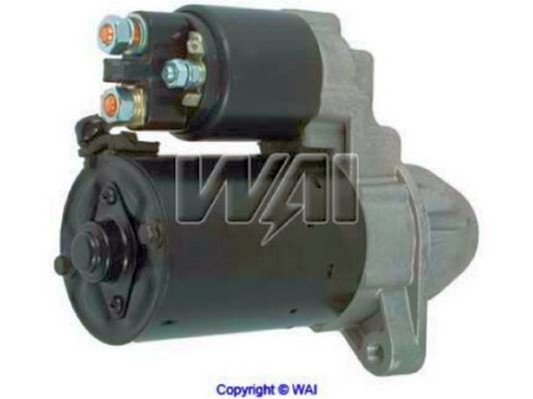

WAI 17920N Starter

Reference: 17920N

Brand: WAI

WAI 17920N Starter

MERCEDES-BENZ Height [cm] : 13,59, Length [cm] : 27, Manufacturer Restriction : BOSCH, Number of mounting bores : 2, Number of Teeth : 9, Number of threaded holes : 2, Rated Power [kW] : 1,1, Rotation Direction : Clockwise rotation, Voltage [V] : 12, Weight [kg] : 3,18, Width [cm] : 16,21
€55.68
More WAI 17920N Starter
In stock
In stock: 11

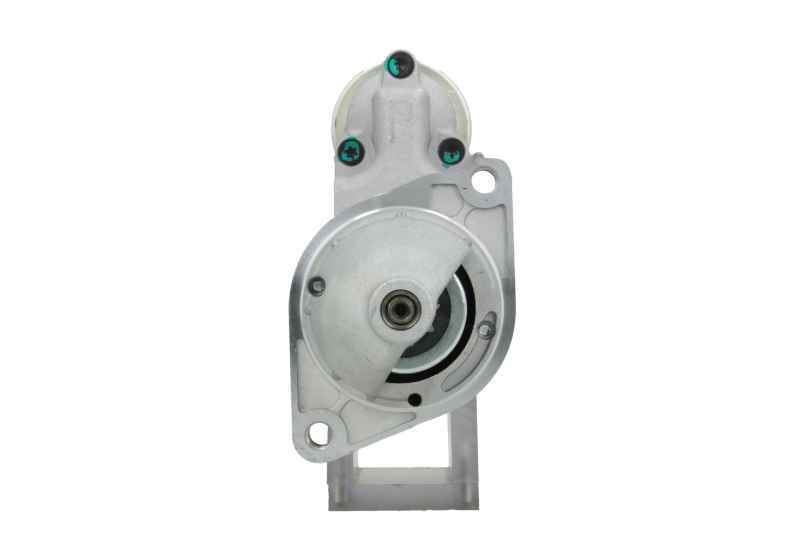

BV PSH 550.524.092.010 Starter
