HELLA 1LL 015 318-011 Insert, headlight
  • HELLA 1LL 015 318-011 Insert, headlight
  • HELLA 1LL 015 318-011 Insert, headlight
  • HELLA 1LL 015 318-011 Insert, headlight
  • HELLA 1LL 015 318-011 Insert, headlight

HELLA 1LL 015 318-011 Insert, headlight

1LL 015 318-011
HELLA
€294.33
Tax included
Quantity
Out-of-Stock

Ask about the product on WhatsApp
  Zásady zabezpečenia

(upraviť pomocou modulu Ubezpečenie zákazníka)

  Zásady doručenia

(upraviť pomocou modulu Ubezpečenie zákazníka)

  Zásady vrátenia

(upraviť pomocou modulu Ubezpečenie zákazníka)

Product Details
1LL 015 318-011
New

Data sheet

Voltage [V]
12
24
Mounting Type
Fitting
mounting
Fastening Type
Four-point attachment
Quantity
1
Left-hand/Right-hand Traffic
for left-hand traffic
Supplementary Article/Info 2
Electromagnetic Compatibility (EMC)
Diffusing Lens Material
Glass
Illuminated Area [mm]
94
Lens Colour
Crystal clear
Housing Colour
black
Supplementary Article/Supplementary Info
without bulb
Reference number
17,5
Fitting Position
Left
Right
Number of light functions
2
Assy./disassy. by qualified personnel required!
Plug Type
DEUTSCH plug
fulfils ECE norm
R10
R149
Lamp Type
LED
Light Design
Asymmetric
DE
LED
Light Function
with high beam (LED)
with low beam (LED)

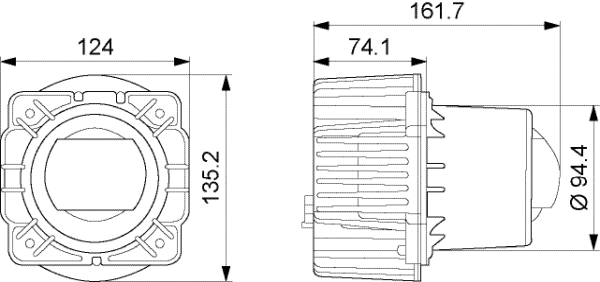

Diameter [mm]
94
Length [mm]
135
Width [mm]
124
Height [mm]
135
Depth [mm]
74
Shape
round

Specific References

EAN13
4082300801354
MPN
1LL 015 318-011
GPSR

Brand: HELLA
